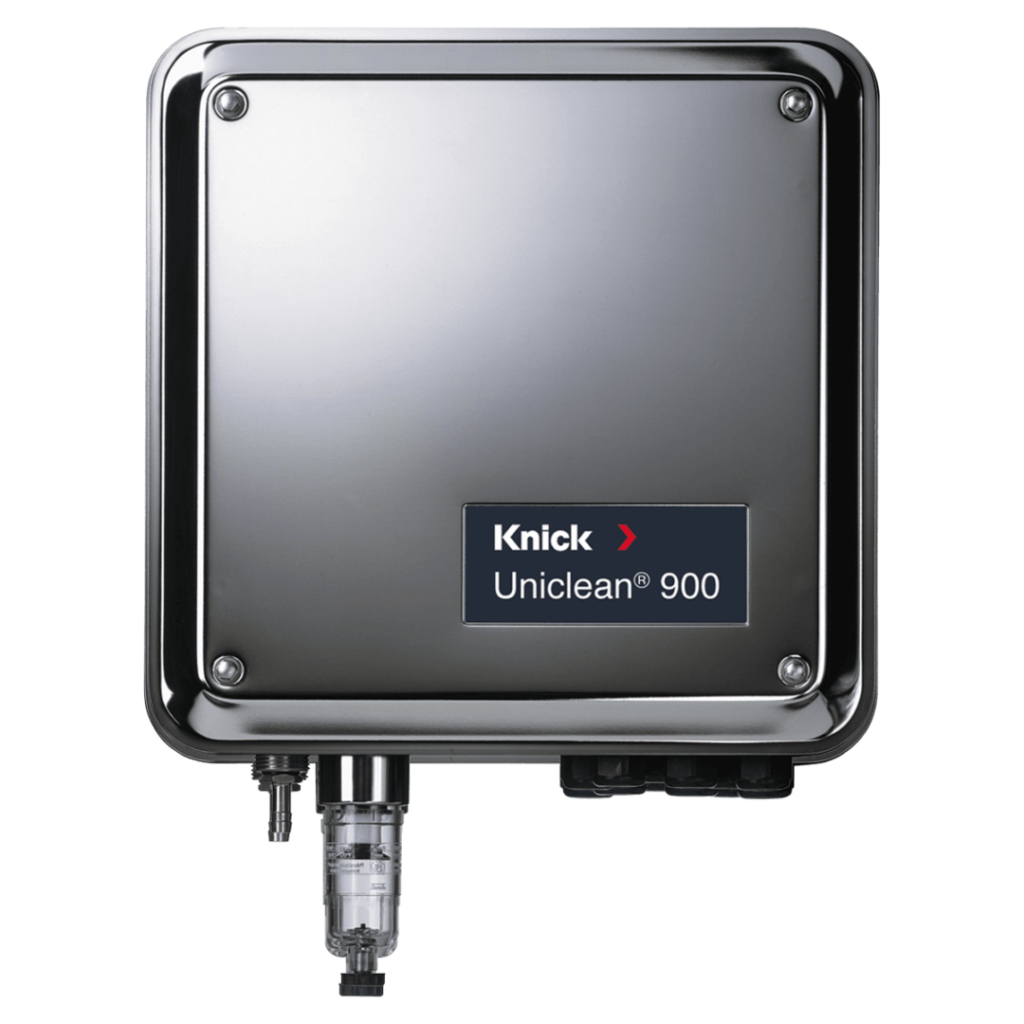

Uniclean 900

Uniclean 900

Detail In combination with the Protos process analysis system and a SensoGate or Ceramat sensor lock-gate, Uniclean provides the ideal functionality of a complete system for automatic process control of a pH measurement.
Maximum availability of the point of measurement: Cleaning without disrupting the process, even when measuring directly in the pressure vessel Since the electrode is not removed for cleaning, the process can continue uninterrupted. This allows problem-free measurements directly in a pressure vessel or in the main pipe. Elaborate and lockable bypasses are eliminated and accuracy increases.
Low maintenance Fully automatic sensor cleaning with water or special cleaning solution in user-defined intervals without interrupting the process. The cleaning solution is automatically pumped into the cleaning chamber. Only the containers need to be refilled.
Cost-effective Low-wear and low-maintenance pumps with extremely low consumption of cleaning agent.
Long sensor life also in critical processes When measuring in aggressive media or at high process temperatures, the sensor rests in the cleaning chamber and is only briefly moved into the process for measurement. The cleaning chamber may be filled with water. This method increases the sensor life significantly.
Safe and easy measurement even in strongly polluted media Sensor cleaning and rinsing is performed at user-defined intervals. Cleaning solution and water are automatically pumped into the rinsing chamber. Dismantling and manual cleaning of the sensor are omitted.
Modern fieldbus integration The interfaces to PROFIBUS PA or Foundation Fieldbus allow the Uniclean system to be integrated directly in a fieldbus network. Naturally also in hazardous locations.
Universal adaptation to retractable fittings The modular structure of the Uniclean system allows any retractable fittings to be used. Optimum functionality is achieved with the Ceramat and SensoGate sensor lock-gates.
Highly accurate measurements The Uniclean 900 system allows highly accurate measurements to be taken even under difficult process conditions such as high pressure, high temperatures, and high levels of impurities. The device can be installed next to the process, within the hazardous area. Control is via the Protos 3400 measuring system or directly via a PLC.
Clean and safe construction All features for smooth, safe, and low-maintenance operation are included as standard: Water pressure gauge, air filter and water trap, flooding sensor in the housing with alert message.
