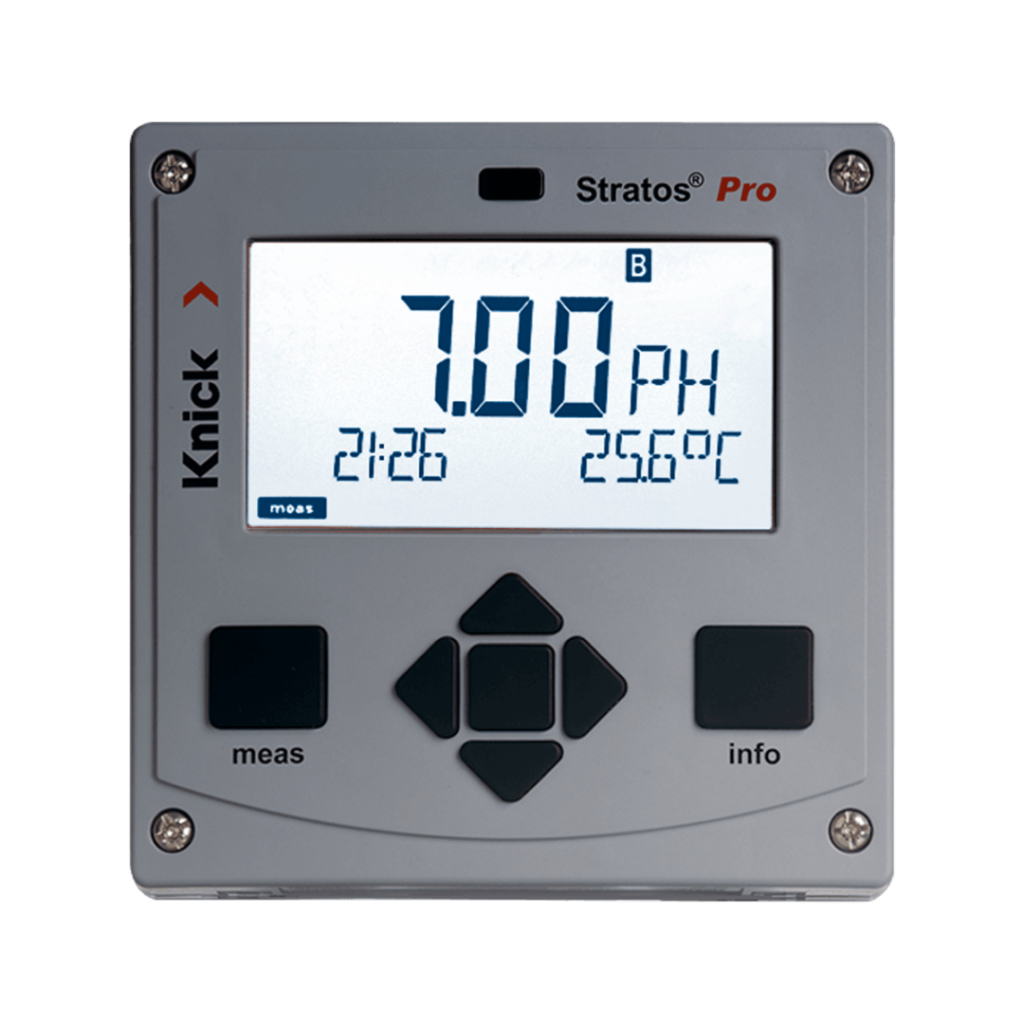

Stratos Pro

Stratos Pro

Detail 2-wire transmitters providing comprehensive features
  Stratos Pro offers pioneering solutions for analysis of pH, ORP, conductivity
(conductive or inductive) and oxygen using 2-wire technology.
  – Intuitive operation with color-coded user guidance
– For digital Memosens and analog sensors
– Extensive diagnostic functions with Memosens sensors
– IP 67/NEMA 4X protection
– Explosion protection: Zone 1 / Class 1 Division 1 (with sensor in Zone 0).
– Digital communication:
  – PROFIBUS-PA
  – FOUNDATION-Fieldbus
  – HART
Outstanding properties A number of outstanding technological properties make the Stratos Pro series the new benchmark for 2-wire analyzers. Colored screen backlighting has been implemented for the first time in this device class, with the lowest possible power consumption.
Wide Range of Functions 2 digital inputs are provided, as well as an analog input plus a second current output for another measured value.
Zone 1 Explosion Protection Stratos Pro is designed for operation in Zone 1 / Class 1 Division 1
hazardous areas (with the sensor in Zone 0). Operation in hazardous areas from –20 °C to +65 °C is possible. The devices are designed for gas and dust explosion protection (G/D) and can naturally also be used outdoors (type 4 enclosure, UV resistant).
