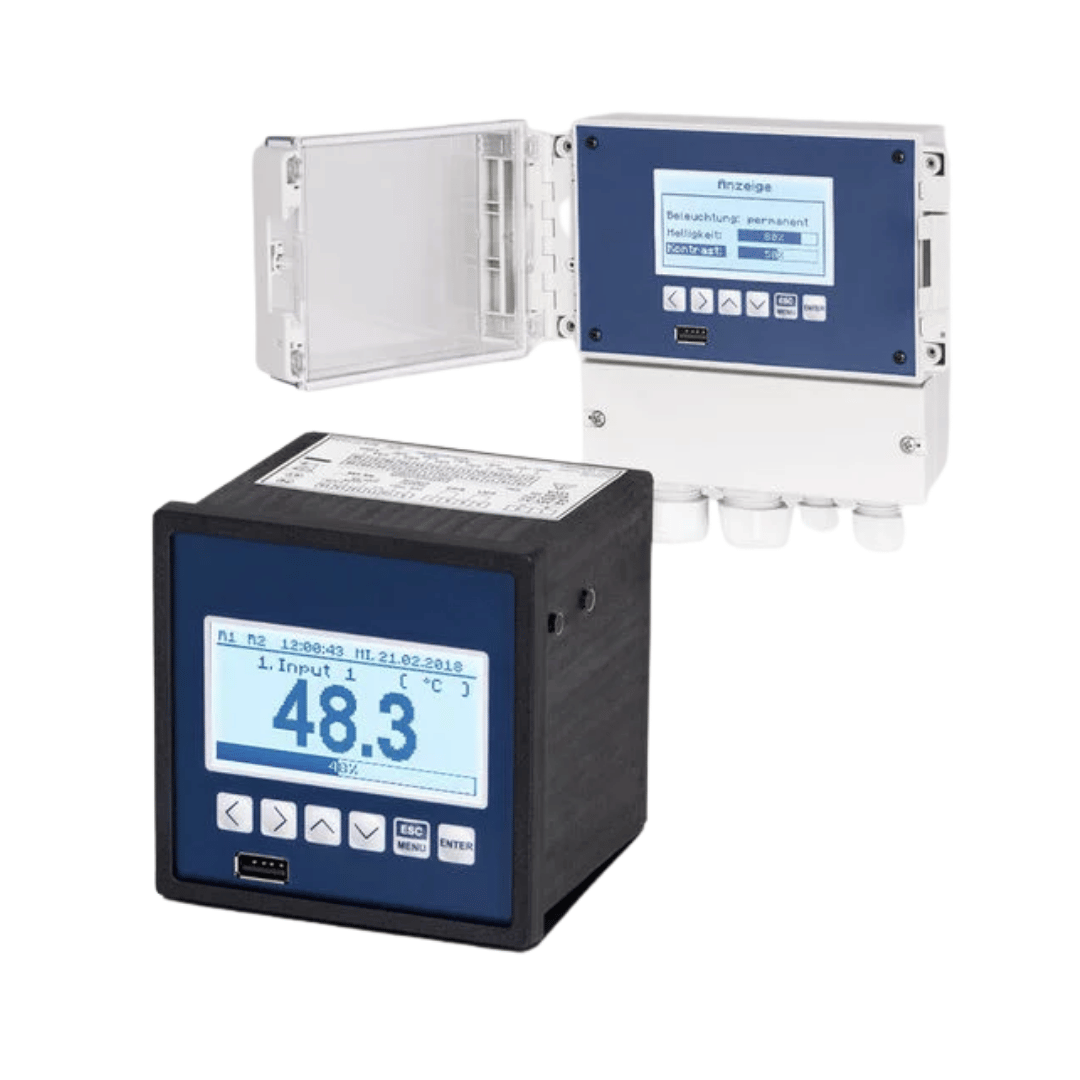

CIT 650
multichannel process display 96 x 96 mm datalogger and contacts
Features
- graphic LC display
- transducer supply 24 VDC
- communication interface RS-485 (Modbus RTU)
- front panel housing 96 x 96 mm
- 1, 4 oder 8 analog input ports
- input signal: 0/4 … 20 mA, 0/1 … 5 V, 0/2 … 10 V
- communication interface USB 2.0
display:
- graphic LC display
input:
- 1/4/8 analogue inputs
- 1 / 4 / 8 RTD inputs
output:
- 2 OC-contacts
Optional Features
- input signal Pt100 / Pt500 / Pt1000
- input thermocouples
- wall mounted housing 166 x 161 mm
Functionality:
- data and configuration transfer via USB, USB stick or RS-485
- sample rate from 1 sec up to 1 h selectable
- triggerring of logging via digital input
- parameterizable alarms for exceeded input range
- adjustable contrast and brightness of the display
- software for parameterization display and archiving of measured values
