FKG series – ProcessX family

FKG series - ProcessX family

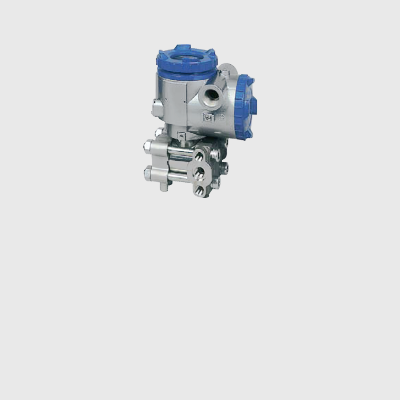

Detail Relative pressure transmitter
SMART Transmitter 4-20mA + HART protocol
Span limits -1 to 500 bar
Rangeability : 100:1
Accuracy : 0.065% (0.04% as an option)
Power supply : 10.5 to 45VDC
Process wetted parts material : Inox 316L, Hastelloy, Monel, Tantalum, …
Process connection : ¼”-18NPT (oval flanges on request)
Burnout according NAMUR NE43 recommandations
Long term stability : +/- 0.1% of maximum span / 10years
Options: » Local analog or digital Indicator
  » Intrinsically safe version
  » Explosion proof version
  » FM, CSA and IECEX certification
  » Stainless Steel electronic housing
